SeaChart Marine Logistics Fleet
Meet M/V Taba
Versatile RoRo capacity for regional cargo movements.
SeaChart Marine operates M/V Taba across the Mediterranean, Black Sea and Red Sea, transporting project cargo, containers, palletized goods, bagged cargo and rolling machinery.
SeaChart Marine Logistics
M/V Taba
Built
1985
Operating Region
Mediterranean · Black Sea · Red Sea
117.20 m
Length Overall
3,133 t
Deadweight Tonnage
2,040 t
Gross Tonnage
236 + 21
Full + Empty Containers
SeaChart Marine Fleet
Regional RoRo Operations
40+
Years in Service
Vessel Overview
Built for flexible and dependable cargo operations.
M/V Taba is a versatile Roll On / Roll Off vessel supporting regional cargo movements across three strategically important seas.
The vessel is maintained and supported by the required insurance and certification. Its stern ramp, garage, cargo hold and multiple loading areas provide practical flexibility for commercial, industrial and project shipments.
Project and Industrial Cargo
Machinery, equipment, steel structures and specialized project shipments.
Vehicles and Rolling Equipment
Cars, trucks, trailers and self-propelled machinery.
Container and General Cargo
Containers, bagged cargo, palletized goods and breakbulk.
Cargo Capabilities
One vessel. Multiple cargo possibilities.
The vessel’s RoRo arrangement, garage spaces, cargo holds and multi-deck configuration support varied cargo combinations.
Industrial machinery, plant equipment and specialized units.
Full and empty containers carried across the vessel’s decks.
Cars, trucks, trailers and self-propelled equipment.
Palletized commercial cargo and packaged goods.
Bagged commodities and general dry cargo shipments.
Non-containerized shipments requiring flexible handling.
Vessel Gallery

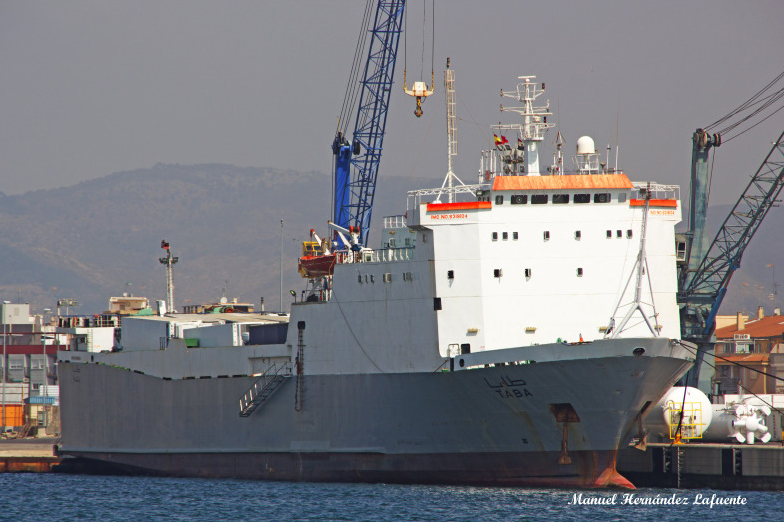

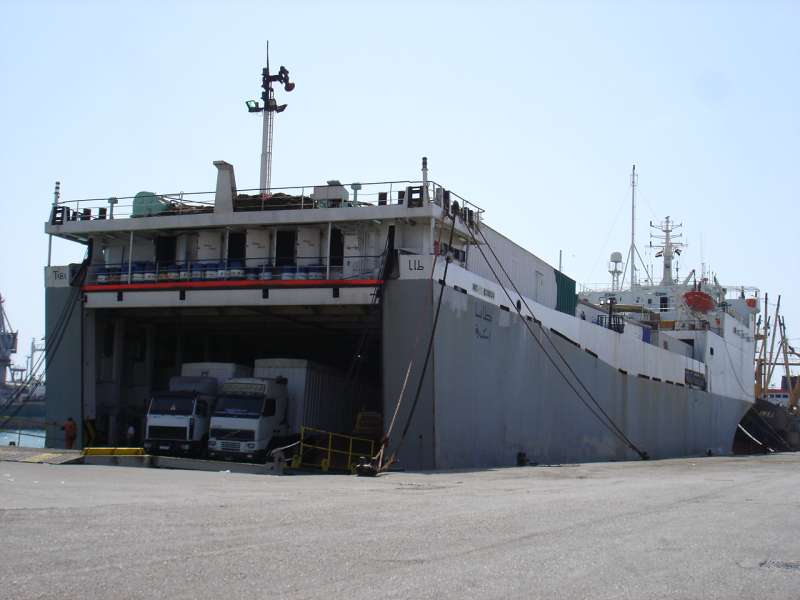

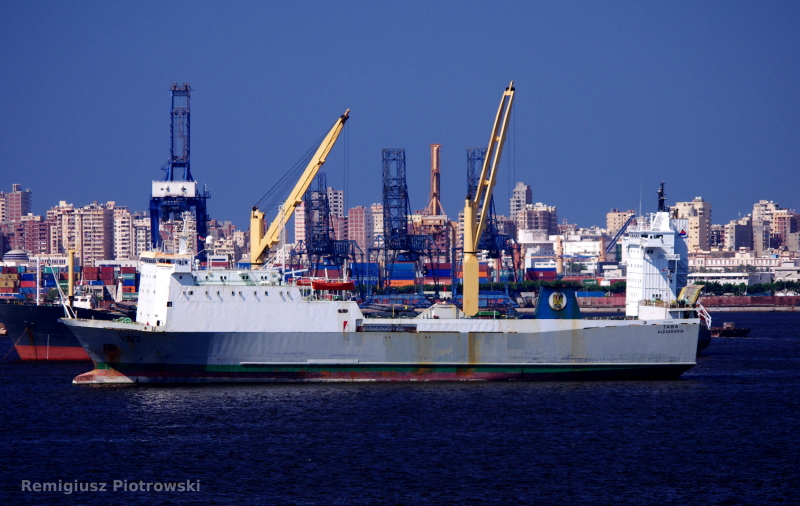

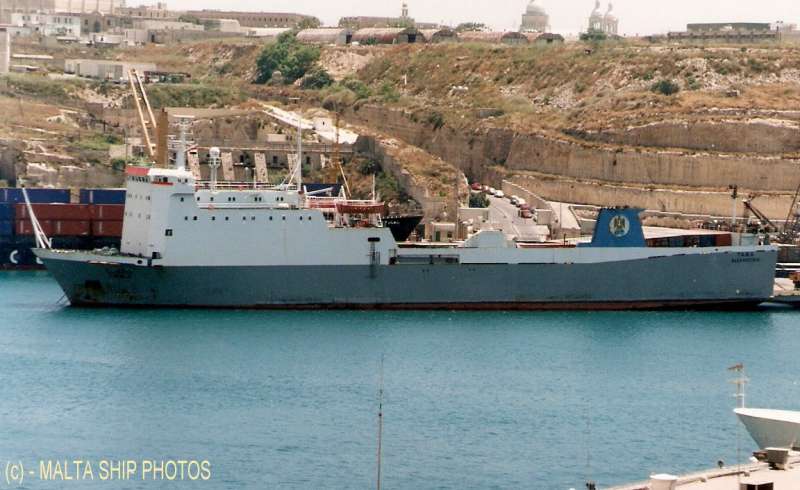

M/V Taba in operation.
Select an image to view the vessel in full size.
Technical Data
Vessel particulars
Select a category to review M/V Taba’s dimensions, capacities, vehicle configuration and loading information.
Classification
G.L.
01
M/V Taba
Principal Particulars
Kind of Vessel
Roll On / Roll Off
Year Built
1985
Classification Society
G.L.
Service Speed
Approx. 11 knots
Number of Holds
1
Number of Garages
1
Length Overall
117.20 m
Length Between Perpendiculars
101.00 m
Breadth
17.50 m
Depth
12.00 m
Draught — Scantling
5.22 m
Ramp Length
15.00 m
Ramp Breadth
13.50 m
Deadweight Tonnage
3,133 t
Net Registered Tonnage
876 t
Gross Registered Tonnage
2,040 t
02
Storage and Lane Capacity
Cargo Capacity
Total Container Capacity
236 full + 21 empty
Cargo Hold Capacity — Bales
11,100 m³
Cargo Hold Capacity — Grain
12,250 m³
Lane Meters — Hold
145 m
Lane Meters — Main Deck
440 m
Lane Meters — Tween Deck
430 m
Suez Canal Gross Tonnage
7,135.66 t
Suez Canal Net Tonnage
5,912.51 t
MGO Consumption at Port
1.5 t
MGO Consumption at Sea
1.5 t
IFO 120 CST Consumption at Sea
Approx. 11 MT at approx. 11 knots
03
RoRo Configuration
Cars & Trailer Capacity
| Deck | Cars | 20 ft Trailers | 40 ft Trailers |
|---|---|---|---|
| Hold | 46 | 0 | 0 |
| Tween Deck | 158 | 66 | 33 |
| Main Deck | 155 | 65 | 30 + 5 × 20 ft |
Actual cargo combinations depend on dimensions, axle loads,
stowage arrangements and final vessel approval.
04
Technical Loading Data
Deck Loads & Cargo Spaces
Main Deck
Lifting Capacity
46 t
Axle Load
16.6 / 22 t
Uniform Load
2 t/m²
Tank Top
Specific Deck Pressure
1.0 (10) t
Axle Load
10 t
Uniform Load
2 t/m²
Tween Deck
Uniform Load
3.0 t/m²
Maximum Axle Load
65 / 34
Wheel Pressure
0.7 / 1.6 N/mm²
Breadth: 3.6 & 13.5 m
Height: 2.8 m
Breadth: 6.2 & 17.5 m
Height: 6.0 m
Breadth: 15 m
Height: 4.5 m
Clear Stern Opening Breadth
Approx. 13.00 m
Clear Stern Opening Height
Approx. 6.00 m
Vessel particulars, capacities and consumption figures are approximate and remain subject to confirmation, owner approval, class records and the final cargo-stowage plan.
Vessel Enquiries
Planning cargo for M/V Taba?
Send the cargo dimensions, weight, origin, destination and preferred loading period. Our team will review vessel suitability and proposed stowage requirements.
